Data Loggers for Fish Tracking
Record and store data for long-term deployments.
Scientist and fish researchers use data loggers to automatically record fish tracking data over time. Large internal storage enables data loggers to independently collect and store acoustic telemetry data for weeks, months and even years without connection to a network or the need for additional hardware. Once collected, the data can be analyzed, validated and documented.

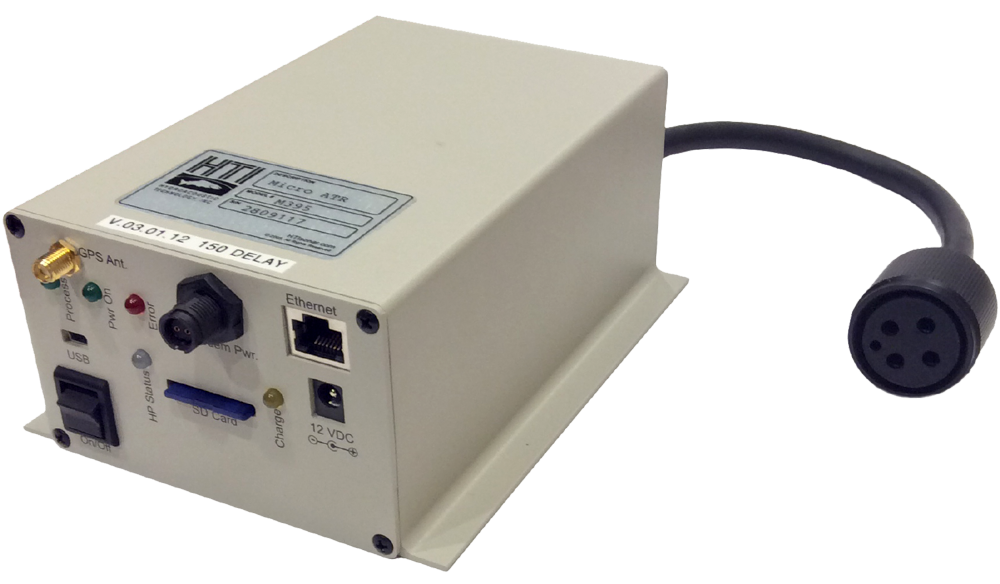

Model 395 Acoustic Tag Data Logger
Model 395 Acoustic Tag Data Logger
The Model 395 Acoustic Tag Data Logger is a simplified data logger that simultaneously detects and identifies tagged fish in real-time. Primarily used for fixed location acoustic tag surveys, the Model 395 ATDL can also be equipped for remote access via an optional cell modem/Wi–Fi.
Frequency
307 kHz
Power Supply
6 – 30 VDC external power required
Power Consumption
~ 2.5 watts (Life = 20 days at 100 amp-hr with 12 VDC battery)
Battery
Recommend deep cycle 12 VDC battery
Operating Temperature
0 – 50°C (32 – 120°F)
